ETV & Turbo Repairing Available at an Affordable Rate.
We service and calibrate Electronic Throttle Valves (ETV) and Turbochargers on our official Cummins-provided precision machine & test rig. Restore factory OEM response, eliminate limp mode, and achieve high savings compared to full unit replacement.
Tested on Cummins-Provided Precision Machines
Electronic Throttle Valves cannot be reliably calibrated by guesswork or manual multimeter testing. Our dedicated electronic rig simulates actual engine conditions and validates throttle angle, response latency, and motor current draw.

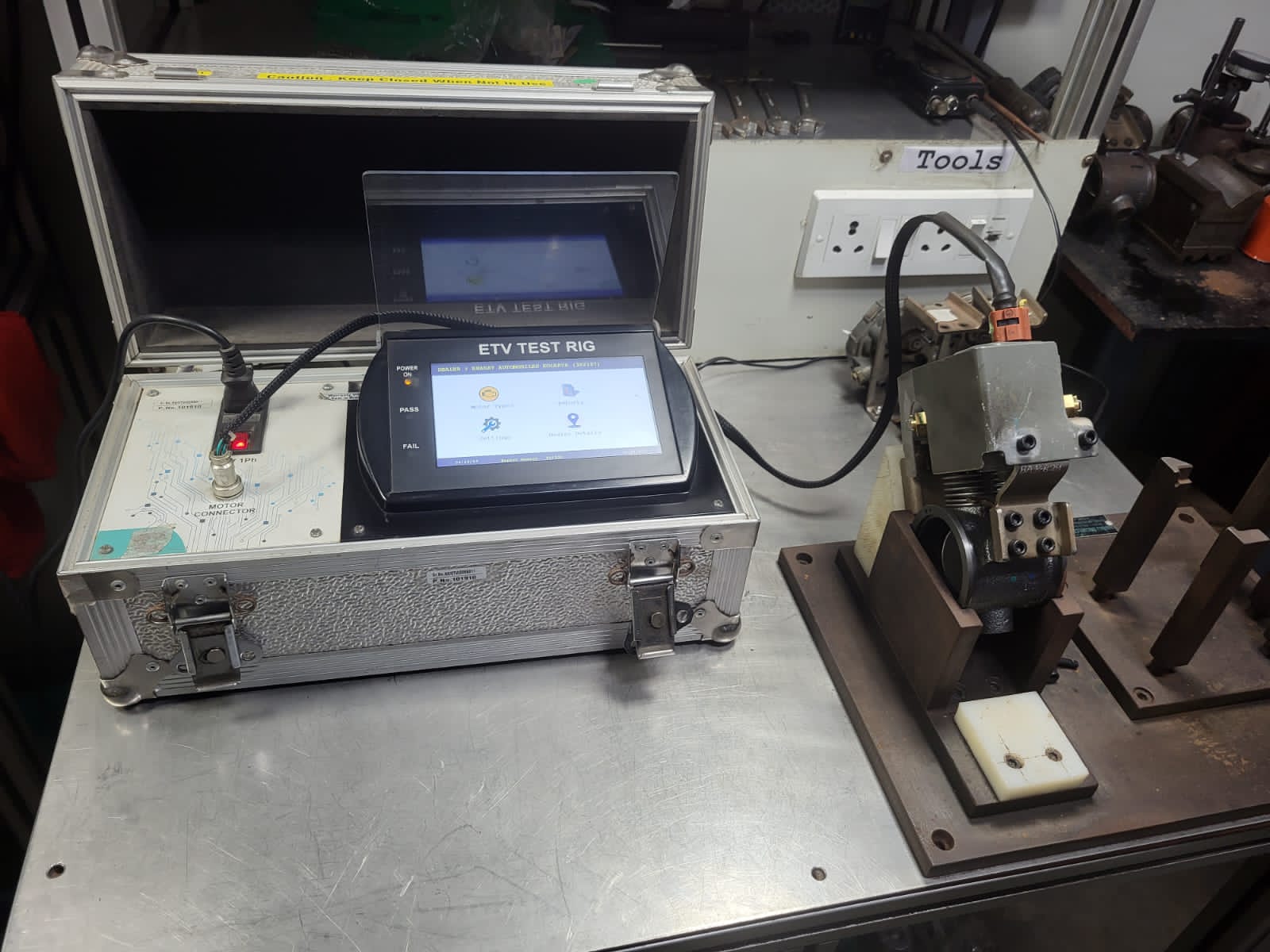

Computerized ETV Test Rig Console
Official test bench supplied for authorized Cummins Care Centers
Measures throttle plate deflection in fractions of a degree against Cummins factory curves.
Diagnoses internal winding resistance, micro-shorts, and mechanical gear binding under simulated load.
Factory wiring connector eliminates false voltage drops and preserves connector pins.
Clear go/no-go diagnostic indicator. Valves only leave our workshop once green PASS is illuminated.
ETV Testing & Dynamic Cycle
See how our engineers mount, wire, and execute automated sweep sequences to verify throttle response.
Why Replace When You Can Repair & Save?
In over 80% of ETV breakdowns, the sturdy valve housing is completely intact. Replacing the entire assembly wastes capital. Our precision overhaul targets only the failed internal motor, gear, or sensor.
Brand New ETV Replacement
- High Capital Outlay: Unnecessarily replaces heavy aluminum housing that rarely wears out.
- Extended Lead Times: Often subject to factory backorders causing vehicle downtime.
- No Flexibility: Forced to buy complete valve assembly without repair option.
Cummins Precision Rig Repair
- Identical OEM Performance: Calibrated on official Cummins ETV Test Rig to factory specs.
- Rapid 24–48h Turnaround: In-stock replacement motors, gears, and sensors.
- Certified Diagnostic Clearance: Delivered with green PASS test record.
Common Symptoms of a Failing Cummins ETV
If your heavy commercial truck, excavator, or generator is experiencing any of the following symptoms, send us the ETV for immediate testing and repair:
Engine Derating & Limp Mode
The ECU detects slow throttle valve movement or actuator position deviation, cutting power to prevent engine damage.
Throttle Sticking & Carbon Soot
Exhaust soot and oil blow-by accumulate in the throttle body bore, binding the butterfly valve shaft and overloading the motor.
Stripped Internal Gears
Planetary gear teeth chip or strip due to cyclic vibration and heat, leaving the valve unable to close or open smoothly.
Check Engine Codes (SPN / FMI)
Fault codes related to Throttle Actuator Position Sensor (TPS) circuit voltage high/low or motor driver overload.
Erratic Idle & Surging RPM
Fluctuating air-fuel intake mixture caused by improper valve seating, leading to rpm hunting, stalling, and excess black smoke.
Generator Shutdown on Load
Cummins industrial generator sets tripping on frequency faults due to sluggish throttle response during sudden load steps.
Our 5-Step ETV Precision Overhaul Process
Every valve undergoes a disciplined engineering protocol from intake to final certification.
Rig Diagnostic
Unit hooked to Cummins Test Rig to log initial fault codes, motor resistance, and stroke travel deviations.
Ultrasonic Clean
Bore, shaft, and butterfly plate undergo chemical degreasing and ultrasonic decarbonization.
Component Rebuild
Precision replacement of failed high-torque DC motor, planetary gear train, bearings, and shaft seals.
Rig Calibration
Automated electronic recalibration on Cummins rig through hundreds of dynamic open/close duty cycles.
Pass Certification
Green PASS clearance granted on dealer console. Unit packaged with test clearance report and dispatched.
Engines & Applications We Support
Our Cummins-provided precision machine features adapter plates and custom firmware harnesses designed specifically for the full spectrum of modern Cummins electronic throttle bodies and EGR control valves.
Ready to Repair Your ETV?
Ship your damaged or malfunctioning valve directly to our workshop in Kolkata, or bring it to our counter. Quick turnaround guaranteed.
